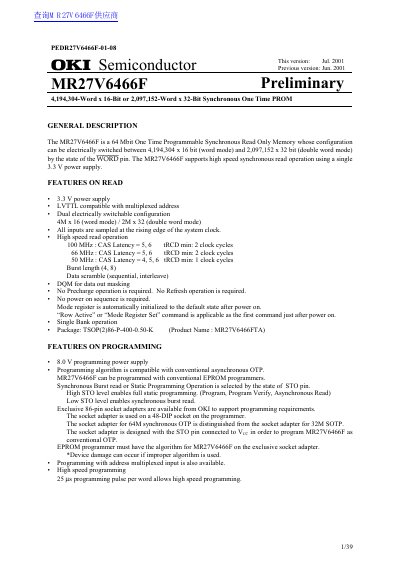

The MR27V6466F is a 64 Mbit One Time Programmable Synchronous Read Only Memory that can be electrically switched between 4,194,304 x 16-bit (word mode) and 2,097,152 x 32-bit (double word mode) by the state of the WORD pin. The MR27V6466F supports high-speed synchronous read operation using a single 3.3 V power supply.
The document describes the MR27V6466F, a 64 Mbit One Time Programmable (OTP) Synchronous Read Only Memory. Its configuration can be electrically switched between 4,194,304 x 16-bit word mode and 2,097,152 x 32-bit double word mode by the state of the WORD pin.
The device supports high-speed synchronous read operation using a single 3.3 V power supply with speeds up to 100 MHz. It features dual electrically switchable configurations and includes burst length options of 4 or 8 cycles, as well as data scramble capabilities.
| Memory Capacity | 64 Mbit |
|---|---|
| Word Mode Configuration | 4,194,304 x 16 bit |
| Double Word Mode Configuration | 2,097,152 x 32 bit |
| Operating Voltage | 3.3 V |
| Programming Voltage | 8.0 V |
| Maximum Frequency (100 MHz) | CAS Latency = 5,6 tRCD min: 2 clock cycles |
| Maximum Frequency (66 MHz) | CAS Latency = 5,6 tRCD min: 2 clock cycles |
| Maximum Frequency (50 MHz) | CAS Latency = 4, 5,6 tRCD min: 1 clock cycles |
| Burst Length | 4, 8 |
The device supports two configurations: 4M x 16 in word mode or 2M x 32 in double word mode.
No, no Precharge operation and no Refresh operation are required.
