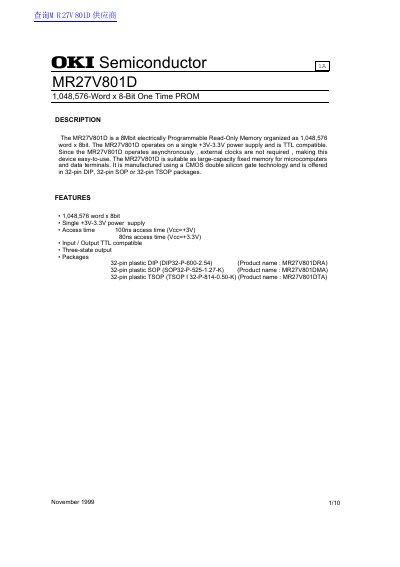

MR27V801D is an 8Mbit One Time PROM, manufactured using CMOS double silicon gate technology, suitable for large-capacity fixed memory for microcomputers and data terminals. It is offered in 32-pin DIP, 32-pin SOP or 32-pin TSOP packages.
The MR27V801D is an 8Mbit electrically programmable read-only memory organized as 1,048,576 words x 8 bits. It operates on a single +3V to +3.3V power supply and is TTL compatible. The device is suitable as large-capacity fixed memory for microcomputers and data terminals and is manufactured using CMOS double silicon gate technology.
| Memory Organization | 1,048,576 word x 8bit |
|---|---|
| Power Supply Voltage | +3V-3.3V |
| Access Time (3V) | 100ns |
| Access Time (3.3V) | 80ns |
| Operating Temperature | 0 to 70 °C |
| Storage Temperature | -55 to 125 °C |
| Package Types | 32-pin DIP, SOP, TSOP |
The access time is 80ns when the power supply voltage is +3.3V.
Yes, the device has TTL compatible input and output.
The maximum power dissipation per package is 1.0 W.
