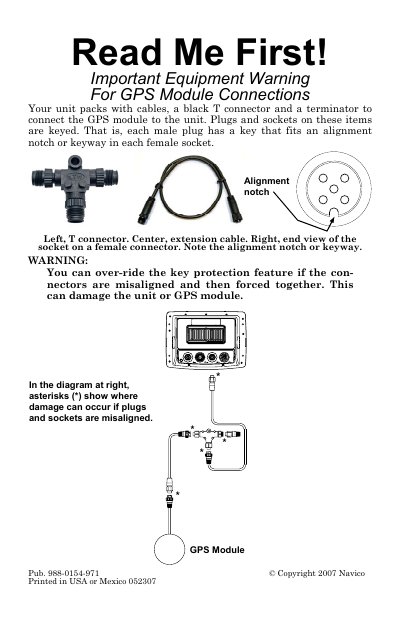

This document is an important equipment warning for GPS module connections. It provides information about the cables, T connector, and terminator used to connect the GPS module to the unit. The document emphasizes the keying feature of the plugs and sockets and warns against misalignment and forced connections that can damage the unit or GPS module.
The document provides instructions on connecting a GPS module to a compatible unit. It specifies that the supplied equipment includes cables, a black T connector, and a terminator.
A critical warning is issued regarding the connectors: they feature an alignment notch or keyway on male plugs to fit female sockets. Forcing misaligned connectors together can damage both the unit and the GPS module.
The unit packs with cables, a black T connector, and a terminator to connect the GPS module.
Forcing misaligned connectors together can damage the unit or the GPS module.
