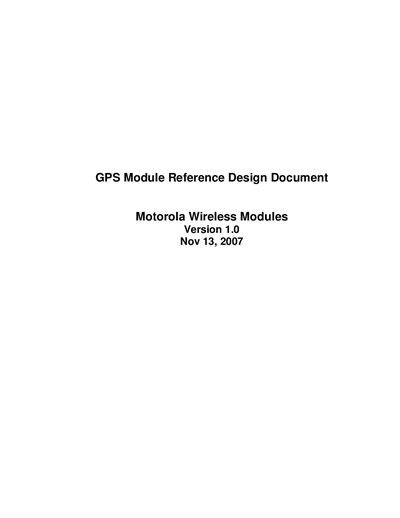

The document introduces the reference design of GPS module, including module features, design principles, performance testing, layout recommendations, etc.
This document provides a reference design for integrating a Motorola GPS receiver module into a device. It explains the module’s features, hardware layout, and connection options, and includes guidelines for RF design, power supply, and antenna integration.
The guide covers board operation, performance testing using the SiRFOncore application, Java‑based control via the G24 module, and detailed layout recommendations such as 50 Ω trace matching, ground plane requirements, and bypass capacitor placement.
| Package size | 8.6 mm × 8.6 mm × 1.55 mm |
|---|---|
| Package type | 32‑pin LGA, SMD, W18 compliant |
| Operating temperature range | -20 °C to +85 °C |
| Cold‑start TTFF (Time To First Fix) | 60 s max |
| Warm‑start TTFF | 45 s max |
| Hot‑start TTFF | 10 s max |
| Acquisition sensitivity | -142 dBm max |
| Tracking sensitivity | -154 dBm max |
The module operates from –20 °C up to +85 °C.
Cold start TTFF is up to 60 seconds, warm start up to 45 seconds, and hot start up to 10 seconds.
Acquisition sensitivity is –142 dBm max and tracking sensitivity is –154 dBm max.
