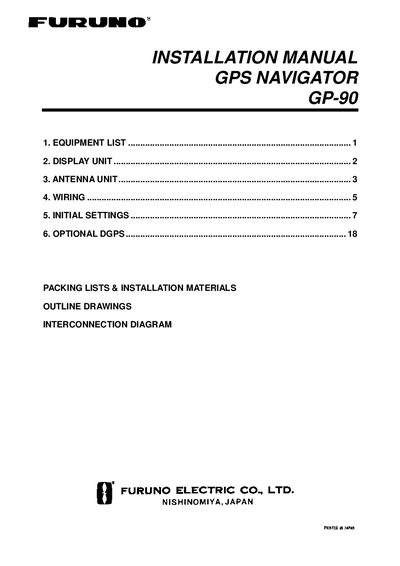

This manual provides installation instructions for the GPS GP-90 Navigator, covering equipment lists, display and antenna unit mounting, wiring diagrams…
The document serves as an installation guide for the GPS GP-90 Navigator. It details the required equipment list, including standard units (GPA-017S, GPA-018S) and options like flush mount kits and various antenna cable sets. The manual outlines safety instructions regarding electrical hazards and grounding requirements before proceeding with physical installation.
| Standard Antenna Cable Length | 15m |
|---|---|
| Ground Wire Size Requirement | 1.25 sq or larger |
Do not work inside the equipment unless familiar with electrical circuits, and turn off power at the mains switchboard before beginning.
An optional flush mount kit (Type F or Type S) is required depending on the specific model.
