LEI FM-6 In-Dash Adapter Kit Installation Notes

About this manual

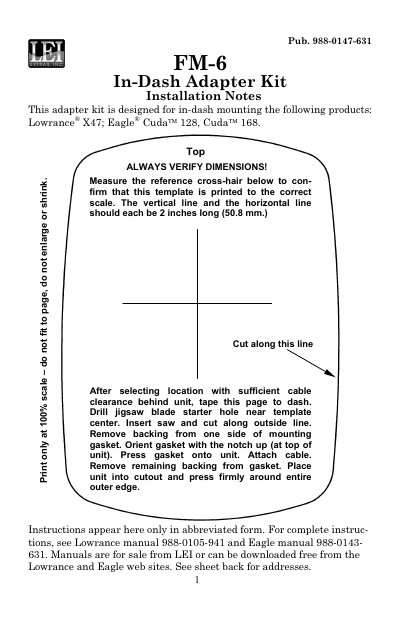

This document provides installation notes for the LEI FM-6 In-Dash Adapter Kit, designed for mounting Lowrance X47 and Eagle Cuda 128/168 units. It includes a scale-verified template for cutting the dash opening and step-by-step instructions for applying the mounting gasket and securing the unit.

The guide directs users to verify the template scale by measuring a 2-inch cross-hair before cutting. It also notes that complete instructions are available in separate manuals for the specific Lowrance and Eagle models, which can be purchased from LEI or downloaded from the manufacturers' websites.

What's inside

• Installation Notes
• Mounting Gasket
• Template Verification
• Service Information
• Accessory Ordering
• Dealer Locator

Frequently asked questions

Which Lowrance and Eagle products are compatible with this adapter kit?

This kit is designed for mounting the Lowrance X47 and the Eagle Cuda 128 and Cuda 168.

What are the required dimensions for the template verification line?

The vertical and horizontal lines on the template must each be 2 inches long.
