This product is a temperature controller that is suitable for various industrial temperature control scenarios. It has three control modes: 2-point control, PID control, and 3-point stepping control. It can be connected to a universal input and an additional analog input. It has at least three process outputs that can be 3 relays or 2 relays.

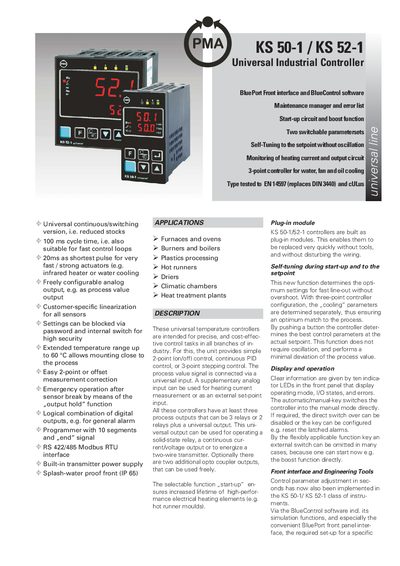

The PMA KS 50-1 and KS 52-1 are universal industrial controllers designed for precise and cost-effective control tasks in various branches of industry. They support simple 2-point (on/off) control, continuous PID control, or 3-point stepping control. The units feature a universal process value input and supplementary analog inputs for heating current measurement or external set-points.
| Control Functions | 2-point, continuous PID, 3-point stepping |
|---|---|
| Interface | RS 422/485 Modbus RTU |
| Front Panel Protection | IP 65 |
| Operating Temperature | up to 60 °C |
| Relay Output Rating | 500 VA, 250 VAC, 2A |
| Universal Output Resolution | 11 bit |
| Current Output Range | 0/4...20 mA |
The controllers support simple 2-point (on/off) control, continuous PID control, or 3-point stepping control.
The unit includes an RS 422/485 Modbus RTU interface.
Yes, the extended temperature range allows mounting up to 60 °C.
