The document introduces the features of the KS98-1 multi-function unit, including the high-resolution LC display, menu system, language selection, and operation interface.

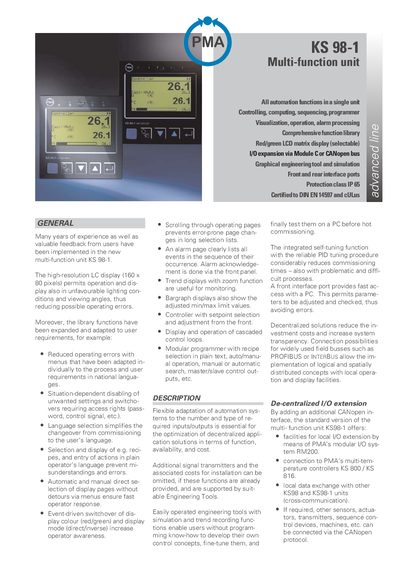

The PMA KS 98-1 is a multi-function unit designed to consolidate all automation functions into a single device. It features controlling, computing, sequencing, and programming capabilities, along with visualization and alarm processing. The unit includes a high-resolution LC display (160 x 80 pixels) and supports various input/output expansions via Module C or CANopen bus.
| Display Resolution | 160 x 80 pixels |
|---|---|
| Protection Class | IP 65 |
| Certification | DIN EN 14597 and cULus |
| Max RAM | 450 functions |
| Scanning Time (INP1) | 200 ms |
| Scanning Time (di1..di12) | 100 ms |
We recommend a maximum of 6 parties on the CANbus (1 master and 5 slaves).
Yes, local data exchange with other KS98 and KS98-1 units is possible via the CANopen protocol.
