The document describes the features and characteristics of the KS 9x-1 program controller, including configurable analog outputs, extended temperature range, fault monitoring, etc.

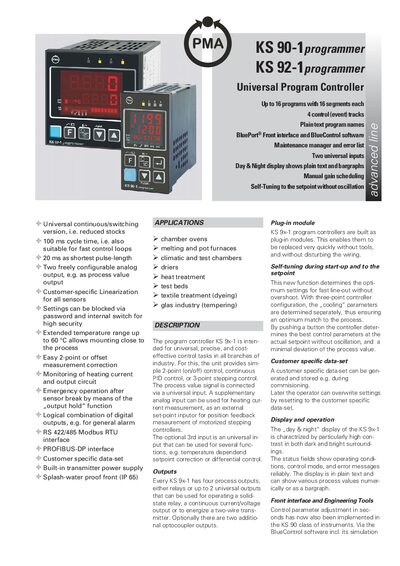

The KS 9x-1 series (KS 90-1 and KS 92-1) are universal program controllers designed for precise, cost‑effective control in various industrial applications. They support up to 16 programs with 16 segments each, offer self‑tuning, password protection, and a day‑and‑night display.
The document provides detailed technical data, including input and output configurations, resolution, communication options (Modbus RTU, PROFIBUS‑DP), environmental limits, power supply ranges, and accessory information such as the BlueControl engineering tool.
| Scanning cycle | 100 ms |
|---|---|
| Shortest pulse length | 20 ms |
| Output resolution (universal output) | 11 bit |
| Front panel IP rating | IP 65 |
| Operating temperature range | -20 °C … 65 °C |
| AC supply voltage | 90 V … 260 V AC |
| Number of programs | Up to 16 programs with 16 segments each |
| Number of process outputs | Four |
| Communication interfaces | RS‑422/485 Modbus RTU, optional PROFIBUS‑DP |
The scanning cycle is 100 ms.
It can store up to 16 programs, each with up to 16 segments.
The controller includes an RS‑422/485 Modbus RTU interface and an optional PROFIBUS‑DP interface.
The front panel is splash‑water proof with an IP 65 rating.
