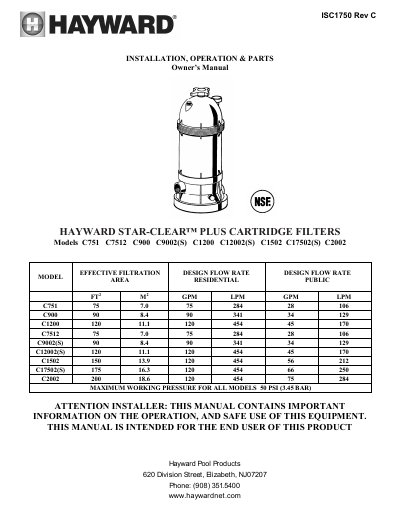

This document is the installation, operation, and parts owner's manual for Hayward Star-Clear™ Plus cartridge filters. It describes the effective filtration area, design flow rate, and maximum working pressure for different models of the product.
This manual covers the Hayward Star-Clear Plus Cartridge Filter, a high-performance swimming pool filter designed for residential, commercial, or public use. It includes specific technical data for various models, such as effective filtration area and design flow rates, along with maximum working pressure limits.
The document provides detailed safety warnings regarding component separation, excess pressure, electrocution, and suction entrapment hazards. It also outlines general installation guidelines, including pump selection, filter location requirements, and the use of genuine replacement parts.
| Maximum Working Pressure | 50 PSI (3.45 BAR) |
|---|---|
| Effective Filtration Area (C751) | 75 FT2 (7.0 M2) |
| Design Flow Rate (C1200) | 120 GPM (454 LPM) |
| Design Flow Rate (C200 2) | 200 GPM (18.6 LPM) |
The maximum working pressure for all models is 50 PSI (3.45 BAR).
It utilizes a reusable single element, reinforced polyester filter cartridge.
No, no tools are needed; simply spin off the locking knob, lift off the filter cover and remove the cartridge.
