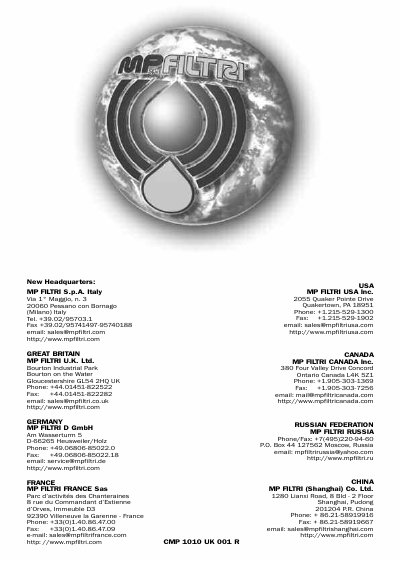

MP FILTRI is an Italian company headquartered in Italy. It has subsidiaries in Great Britain, Germany, France, Russia, China, Canada and the United States. They produce automotive filters and industrial filters.
This document provides technical specifications for the MIP FILTRI MPF series of hydraulic filter housings. It covers various models including MPF 020 through MPF 750, listing housing materials such as aluminium and nylon, along with compatible seal types (NBR and FPM).
The guide includes detailed tables for working pressure, temperature ranges, weights, volumes, and connection thread sizes. It also features performance curves showing the relationship between flow rate and pressure drop for different filter lengths.
| Working pressure | 8 bar (0.8 MPa) |
|---|---|
| Temperature range | -25°C to +110°C |
| Bypass valve opening pressure (Standard) | 1.75 bar ± 10% |
| Bypass valve opening pressure (Optional) | 3 bar ± 10% |
| Element burst pressure | 10 bar |
The head is made of Aluminium, except for the MPF 020 model which uses Nylon.
The data assumes a pressure drop of 0.5 bar, oil kinematic viscosity of 30 mm²/s, and density of 0.86 kg/dm³.
