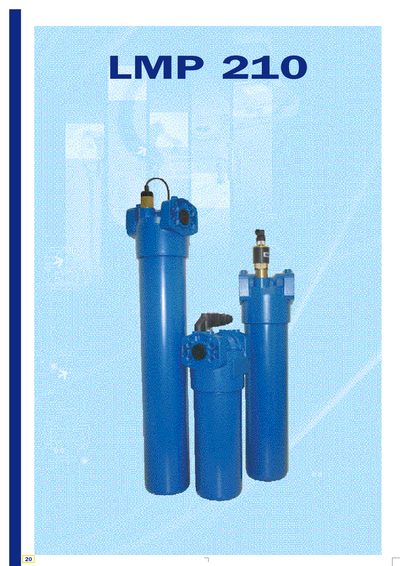

LMP 210 series filter has a working pressure of 60 bar and can be used for mineral oils, water, ethylene glycol and other media.
This document provides technical specifications for the MP Filtri LMP 210 filter housing. It covers working pressure limits, material composition including anodised aluminium and nylon bypass valves, and temperature ranges from -25°C to +110°C.
| Working pressure | 60 bar |
|---|---|
| Test pressure | 90 bar |
| Burst pressure | 180 bar |
| Temperature range | -25°C to +110°C |
| Opening pressure | 3.5 bar |
| Head material | Anodised Aluminium |
| Housing material | Anodised Aluminium |
| Bypass valve material | Nylon |
| Standard seal type | NBR series A |
The recommended maximum flow rate is based on a pressure drop of 0.6 bar, a kinematic viscosity of 30 mm²/s, and a density of 0.86 kg/dm³.
The V series FPM seals are compatible with synthetic fluids type HS-HFDR-HFDS-HFDU.
The standard bypass valve opening pressure is 3.5 bar with a +10% tolerance.
