LMP 400-401 series oil filters are made of alloy aluminum material filter head, with high pressure, high temperature, corrosion resistance and other characteristics.

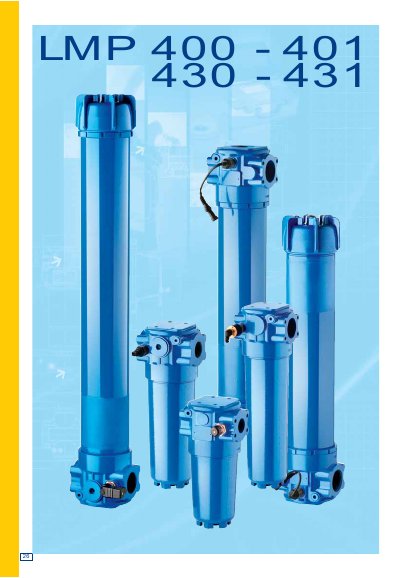

This document provides technical specifications for the MP Filtri LMP 400-401 and LMP 430-431 filter housings. It covers material compatibility with mineral oils, synthetic fluids, and aqueous emulsions, along with specific pressure ratings including working, test, and burst pressures.
| Working pressure (LMP 400) | 60 bar (6 MPa) |
|---|---|
| Test pressure (LMP 400) | 90 bar (9 MPa) |
| Burst pressure (LMP 400) | 180 bar (18 MPa) |
| Working temperature range | 25°C to +110°C |
| Bypass valve opening pressure | 3.5 bar (+10%) |
The housing is compatible with mineral oils to ISO 2943, synthetic fluids, aqueous emulsions, water and glycol.
The recommended maximum oil velocity is 2.5 m/sec.
