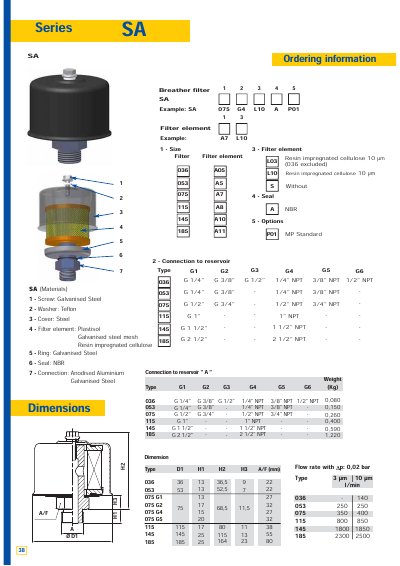

This document provides technical data for the MP FILTRI SA series of breather filters. It includes an example ordering code (SA 075 G4 L110 A PO1) and explains the meaning of each parameter in the order string, such as size, connection type, filter element material, and options.
The datasheet lists available materials for screws, washers, covers, rings, and seals. It also provides a table of dimensions (D1, H1, H2, H3) and flow rates with an air pressure drop of 0.02 bar for various filter sizes and connection types.
| Filter Element Material | Resin impregnated cellulose 10 pm (036 excluded) / Resin impregnated cellulose 10 ym s Without |
|---|---|
| Seal Material | NBR |
| Screw Material | Galvanised Steel |
The filter element is made of resin impregnated cellulose.
Available connections include G1/4", G3/8", G1/2", 1/4" NPT, 3/8" NPT, and 1/2" NPT.
