This document mainly introduces the information of the 82 524 type synchronous gear motor product, including the rated power of the motor, the rated voltage and frequency of the motor, the output speed of the motor, and the reduction ratio of the motor.

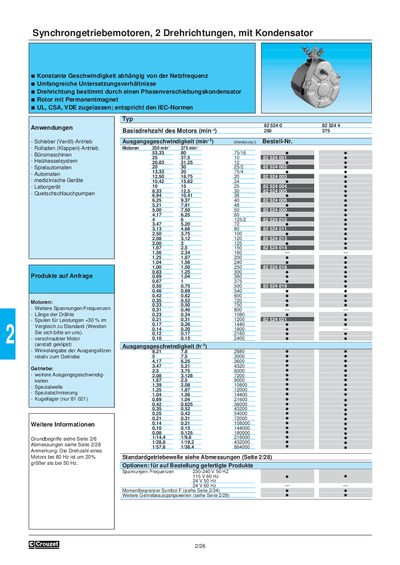

This document provides technical data for Crouzet synchronous gearmotors (Type 82 524 0 and 82 524 4) featuring two rotation directions and a capacitor for speed control. The motors operate at a constant speed dependent on the mains frequency and are UL, CSA, and VDE certified, complying with IEC standards. This manual is written in German.
| Power Input | 3.5 W |
|---|---|
| Power Output | 0.98 W |
| Max Temperature Rise | 50 C |
| Ambient Temperature | -5 bis +70 C |
| Weight | 140 g |
| Wire Length | 250 mm |
| Protection Class | IP40 |
The maximum ambient temperature is +70 C.
The power input (Aufnahmeleistung) is 3.5 W.
Yes, they are UL, CSA, and VDE certified and comply with IEC standards.
