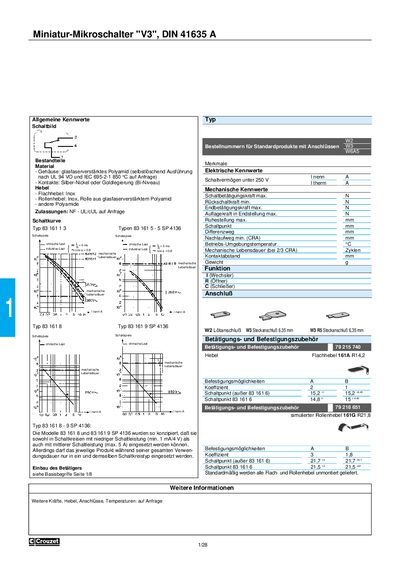

Crouzet-W2/W3/W6A5 technology data(German)(1)

This document is the instruction manual of Miniatur-Mikroschalter 83 161 1

Brand: Crouzet
Category: Other device
Document type: Datasheet
Language: German
Pages: 4
File format: PDF
File size: 103 KB
Published: 19 March, 2012
Updated: 30 September, 2023
Models: CROUZET-W2, W6A5
MD5 checksum: FEF8BC0C0AC09045FF749419439882AA
PDF: Crouzet-W2/W3/W6A5 technology data(German)(1) PDF

About this manual

This datasheet provides the technical specifications for Crouzet's Miniatur‑Microswitch V3 (DIN 41635 A). It lists general parameters, material composition, electrical ratings, mechanical characteristics, and mounting options for the various switch variants.

The document includes tables of dimensions, contact forces, switching capacities, and recommended installation accessories, as well as ordering numbers for the different lever types and connector options. This manual is written in German.

What's inside

Allgemeine Kennwerte
Material
Hebel
Zulassungen
Schaltkurve
Einbau des Betatiders
Bestellnummer
Merkmale
Elektrische Kennwerte
Mechanische Kennwerte

Specifications

Housing material	glass‑fiber reinforced polyamide
Contact material	silver‑nickel or gold alloy
Operating temperature range	-20 °C to +125 °C
Weight	9 g

Frequently asked questions

What material is used for the housing of the V3 microswitch?

The housing is made of glass‑fiber reinforced polyamide.

What contact materials are available for the V3 microswitch?

Contacts are either silver‑nickel or a gold alloy.

What is the operating temperature range of the V3 microswitch?

It can operate from –20 °C up to +125 °C.
