The 82 520 0 / 82 520 4 series 2-pole synchronous motors with capacitor have a constant speed of 250 or 375 min-1 (depending on the mains frequency), a rated power of 0.98 to 1.12 W, a rotation direction determined by a phase shift capacitor, sintered bearings that are self-lubricating for life, and UL and CSA (Class B)-VDE approval.

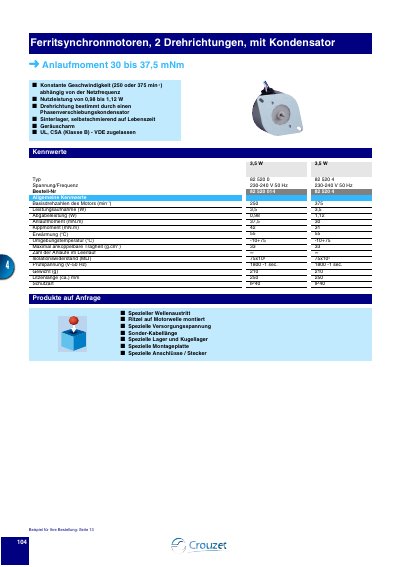

This document provides technical specifications for Crouzet ferrite synchronous motors, specifically models 825200 and 825204. These two-direction motors operate with a constant speed of either 250 or 375 rpm depending on the network frequency (50 Hz). The direction of rotation is determined by a phase-shifting capacitor. This manual is written in German.
| Product Type | Ferrite synchronous motors, 2 directions, with capacitor |
|---|---|
| Constant Speed (50 Hz) | 250 or 375 min-1 |
| No-load Power Consumption | 0.98 to 1.12 W |
| Rated Voltage/Frequency | 230-240 V 50 Hz |
| Bearing Type | Sinter bearings, self-lubricating for life |
| Certifications | UL, CSA (Class B), VDE approved |
| Weight | 210 g |
| Protection Class | IP40 |
The motors operate at a voltage of 230-240 V with a frequency of 50 Hz.
The motors can operate in an ambient temperature range from -10 to +75 degrees Celsius.
The maximum coupleable inertia for both motor types is 33 g.cm².
