88970119-GSM is a module for remote control of your application. Automatic notification of alarms via SMS (GSM Modem) / email or on a PC with M3 ALARM software. Millenium 3 program can be downloaded, modified and sent. Input and output states, as well as all program values, can be polled and controlled remotely. There are 2 types of pre-configured ready-to-use modems: STN modem for wired transmission networks and GSM modem for wireless communication.

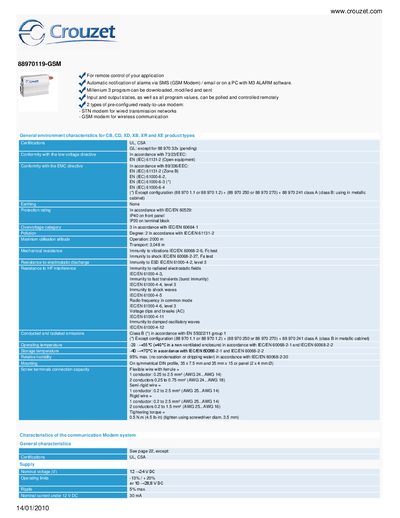

This manual describes the Crouzet 88970119‑GSM GSM modem, which enables remote control of applications, automatic alarm notification via SMS, email, or PC software. It includes two pre‑configured modem options (STN for wired networks and GSM for wireless communication) and outlines the communication link with Millenium controllers.
Technical data such as environmental ratings, power supply limits, input/output characteristics, protection ratings, and AT command usage are detailed. Installation guidance covers mounting on DIN rails, wiring, connector types, and recommended torque. The document also lists performance specifications like operating temperature ranges, IP rating, nominal current, and voltage tolerances.
| Nominal voltage (DC) | 12 V DC (-13% / +20%) |
|---|---|
| Nominal current (24 V DC) | 30 mA |
| Operating temperature range | -20 °C to +55 °C (+40 °C in non‑ventilated enclosure) |
| IP rating (terminal block) | IP20 |
| Overvoltage category | Category 3 |
| Maximum absorbed power (CB12‑CD12‑XD10‑XB10) | 4 VA |
| Supply frequency range | 50/60 Hz (+4% / -6%) |
The module includes an STN modem for wired transmission networks and a GSM modem for wireless communication.
The nominal current under 24 V DC is 30 mA.
