Millenium 3 is a cost-effective controller from B&R with 120 lines of LADDER language and 350 typical FBD language blocks of storage, an LCD screen with 4 rows of 18 characters and configurable backlighting, selective parameter setting, and the ability to choose which parameters can be adjusted on the front panel. Analogue inputs 0-10 V c or 0-20 mA/Pt 100 require the use of CD12 CD20 converters
The Millenium 3 Standard version is a budget‑type controller featuring a 4‑line LCD with 18 characters per line and configurable backlighting. It provides 120 lines of LADDER program memory and up to 350 typical blocks in FBD language.

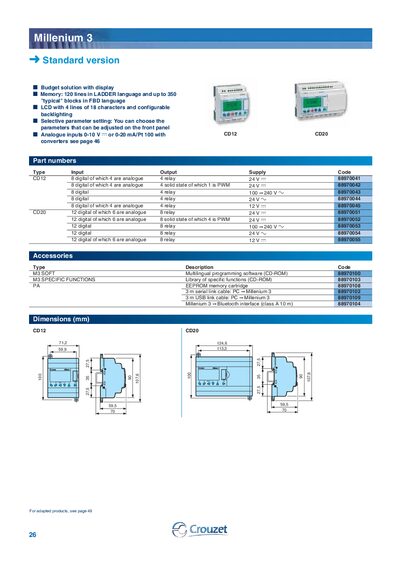

The device supports analogue inputs of 0‑10 V or 0‑20 mA/PT100, a range of digital and relay outputs, and includes optional accessories such as serial, USB and Bluetooth links. Part numbers and dimensions for each configuration are listed in the sheet.
| Memory | 120 lines LADDER, up to 350 blocks FBD |
|---|---|
| Display | LCD, 4 lines × 18 characters, configurable backlighting |
| Analogue inputs | 0‑10 V or 0‑20 mA/PT100 |
| Digital output example | 8 digital, 4 analogue, 4 relay 24 V |
It supports both LADDER and Function Block Diagram (FBD) languages.
The LCD provides 4 lines of 18 characters each.
Analogue inputs can be configured for 0‑10 V or 0‑20 mA/PT100.
