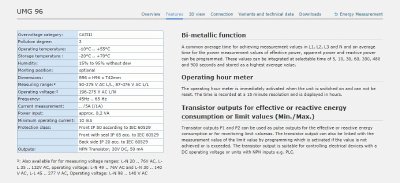

The Janitza UMG 96 is an energy meter designed for monitoring electrical parameters. It features a 3D view connection and supports various voltage measurement ranges, including 50-275 V AC L/L and 87-476 V AC L/L. The device operates within a temperature range of -10°C to +55°C and supports frequencies from 45 Hz to 65 Hz.
Key technical capabilities include bi-metallic function energy measurement with programmable integration times and an operating hour meter. The unit provides NPN transistor outputs for effective or reactive energy consumption and limit value monitoring, suitable for controlling devices with DC operating voltages or NPN inputs.
| Overvoltage category | CATIII |
|---|---|
| Pollution degree | 2 |
| Operating temperature | -10°C... +55°C |
| Storage temperature | -20°C... +70°C |
| Humidity | 15% to 95% without dew |
| Dimensions | B96 x H96 x T42mm |
| Measuring range L/L | 50-275 V AC |
| Measuring range L/L (High) | 87-476 V AC |
| Operating voltage | 196-275 V AC L/N |
| Frequency | 45Hz .. 65 Hz |
| Power input | approx. 0,2 VA |
| Minimum operating current | 10 mA |
| Protection class (Front) | IP 50 |
| Protection class (Front with seal) | IP 65 |
| Protection class (Back side) | IP 20 |
| Output type | NPN Transistor |
The device operates between -10°C and +55°C.
Yes, it supports measuring ranges up to 87-476 V AC L/L.
