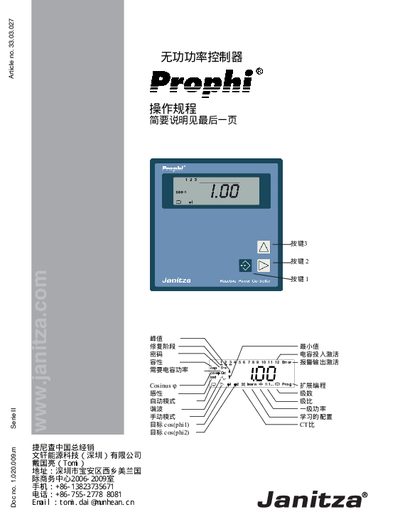

The Janitza Series II Reactive Power Controller manual provides programming, configuration, communication and technical specifications.
This manual describes the operation and programming of the Janitza Series II Reactive Power Controller. It includes key functions, learning configuration steps and wiring diagrams for measurement and supply voltage connections.
The document also lists supported communication interfaces (Modbus RTU, Profibus DP), environmental limits, electrical ratings and safety standards required for installation and maintenance.
| Maximum Input Voltage | 2200 V AC |
|---|---|
| IP Rating | IP65 (IEC 60529) |
| Operating Temperature Range | -10 °C … +55 °C |
| Frequency Range | 45 Hz … 65 Hz |
| Reactive Power Range | 0 kvar … 9999 kvar |
| Current Transformer Ratio | 1 : 1 |
It can handle up to 2200 V AC.
The device operates from –10 °C to +55 °C.
It is rated IP65 according to IEC 60529.
