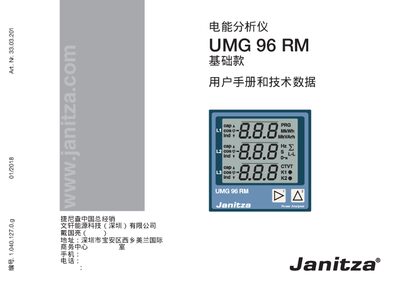

The Janitza UMG 96 RM manual provides safety guidelines, installation steps, operation instructions, and technical specifications for this power analyzer.
This manual covers the safe handling, installation, and operation of the Janitza UMG 96 RM power analyzer. It includes safety warnings, inspection procedures, and detailed instructions for connecting power, voltage, and current measurement circuits.
The document also provides technical data such as installation depth, supply voltage ranges, frequency range, measurement capabilities, and interface options like RS485 and digital outputs. Programming mode functions and calibration guidelines are described for qualified personnel.
| Installation depth | 45 mm |
|---|---|
| Supply voltage (230 V option) | 90 V – 277 V (50/60 Hz) or DC 90 V – 250 V |
| Supply voltage (24 V option) | 24 V – 90 V AC / 7 V DC; 150 V CAT I |
| Frequency range | 45 Hz – 65 Hz |
| Voltage measurement capability | 3‑phase up to 300 V |
| Current measurement capability | 3‑phase via current transformer (CT) |
| RS485 interface | Available |
| Digital outputs | 2 |
Press buttons 1 and 2 together for about one second to enter programming mode.
The device requires an installation depth of 45 mm.
