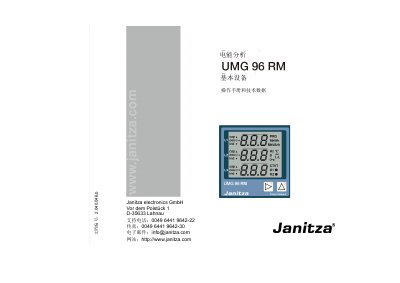

Janitza UMG 96RM Energy Analyzer Operation Manual

About this manual

The Janitza UMG 96RM is a basic device designed for measuring and calculating electrical parameters such as voltage, current, power, and energy in building equipment. It is suitable for installation in fixed, weather-resistant switchboards and supports TT and TN network measurements with a frequency range of 45-65 Hz. The device features a front panel installation size of 96x96 mm, a backlit LCD display, and two buttons for operation. This manual is written in German.

What's inside

• Overview
• Receiving Inspection
• Installation
• Operation
• Configuration
• Debugging
• Maintenance
• Technical Data
• Compliance Declaration
• Connection Examples

Frequently asked questions

What is the UMG 96RM used for?

The device measures and calculates electrical parameters such as voltage, current, power, energy, and harmonics delivered to distribution systems.

What is the maximum voltage rating for the device's inputs?

The voltage measurement input supports a nominal voltage of up to 300V.

How many digital outputs does the unit have?

The device features two digital output channels.
