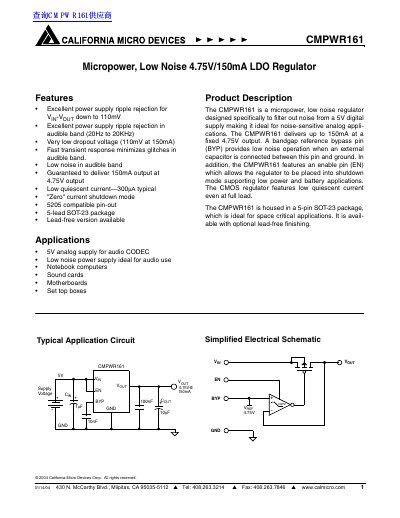

The CMPWR161 is a micropower, low noise regulator designed specifically to filter out noise from a 5V digital supply making it ideal for noise-sensitive analog appli- cations.
The CMPWR161 is a micropower, low noise linear regulator designed to filter noise from 5V digital supplies for sensitive analog applications. It delivers a fixed 4.75V output at up to 150mA with a very low dropout voltage of 110mV at full load. The device includes an enable pin for shutdown mode and a bypass pin for noise reduction, housed in a 5-lead SOT-23 package.
| Output Voltage | 4.75V |
|---|---|
| Output Current | 150mA |
| Dropout Voltage | 110mV |
| Quiescent Current | 300uA |
An output capacitor of 10uF is recommended to provide necessary phase compensation.
A 10nF capacitor is recommended for the bypass pin to maximize power supply ripple rejection.
