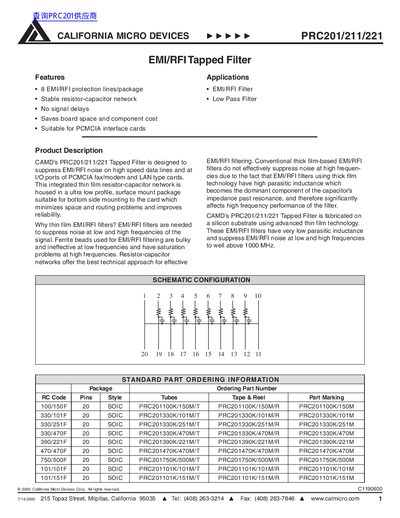

The document describes the features and characteristics of California Micro Devices Corp.'s PRC201/211/221 Tapped Filter, including 8 EMI/RFI protection lines/package, stable resistor-capacitor network, no signal delays, saving board space and component cost, suitable for PCMCIA interface cards.
The California Micro Devices (CAMD) PRC201/211/221 Tapped Filter is an integrated thin film resistor-capacitor network housed in a surface mount package. It is specifically designed to suppress EMI/RFI noise on high-speed data lines and I/O ports of PCMCIA fax/modem and LAN type cards.
| Operating Temperature Range | 0°C to 70°C |
|---|---|
| Power Rating/Resistor | 100mW* |
| Package Power Rating | 1W, max. |
| Absolute Tolerance (R) | +10% |
| Absolute Tolerance (C) | +20% |
The filters suppress EMI/RFI noise at low and high frequencies to well above 1000 MHz.
The device operates within a range of 0°C to 70°C.
