The document describes the features and characteristics of the P/Active™ 1% Tolerance Precision Isolated Series Termination Network, including highly integrated design, 1% absolute tolerance terminations, ultra-low cross talk, and 11 terminating lines. The network offers high performance, high reliability, and low cost through manufacturing efficiency. It is suitable for applications such as PC desktop and PC-based server systems, engineering workstations, and embedded RISC processor systems.
The PACRPI series termination network provides a highly integrated series termination solution with 1% absolute tolerance, ultra‑low crosstalk and 11 terminating lines per package, helping to save board space and improve system reliability. It is designed for PC desktops, servers, engineering workstations and embedded RISC processor systems.

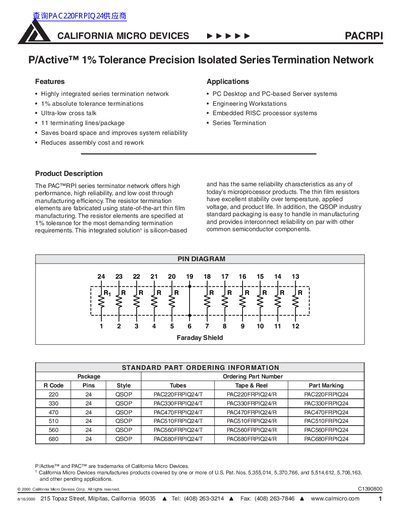

The datasheet includes a pin diagram, standard part ordering information for QSOP packages, and detailed electrical specifications such as tolerance, temperature range, power rating and insulation resistance, as well as frequency response and crosstalk test data.
| Absolute Tolerance | +1% |
|---|---|
| Operating Temperature Range | 0°C to 70°C |
| Power Rating | 100mW |
| Minimum Insulation Resistance | 10,000MΩ |
| Package Type | QSOP |
| Number of Pins | 24 |
The network provides a 1% absolute tolerance.
It operates from 0°C to 70°C.
Each package contains 11 terminating lines.
Each resistor is rated for 100 mW.
