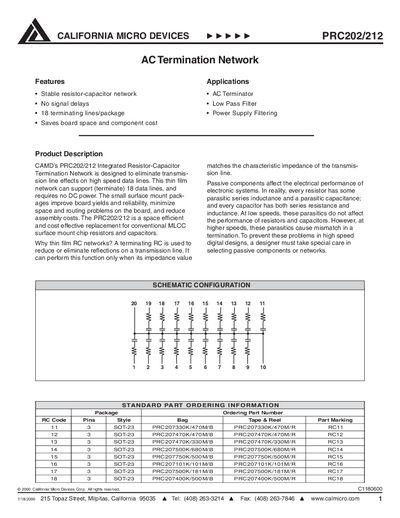

The PRC202/212 is a thin film resistor-capacitor termination network from California Micro Devices Corp. It is designed to eliminate transmission line effects on high speed data lines. The network supports (terminates) 18 data lines and requires no DC power. The small surface mount packages improve board yields and reliability, minimize space and routing problems on the board, and reduce assembly costs. The PRC202/212 is a space efficient and cost effective replacement for conventional MLCC surface mount chip resistors and capacitors.
The California Micro Devices PRC202/212 is an integrated thin film resistor-capacitor termination network designed to eliminate transmission line effects on high-speed data lines. This device supports up to 18 terminating lines within a single package and requires no DC power, making it suitable for AC terminators, low-pass filters, and power supply filtering applications.
| Terminating lines supported | 18 |
|---|---|
| Power Rating/Resistor | 100mW |
| Package Power Rating | 1W, max. |
| Operating Temperature Range | 0°C to 70°C |
The PRC202/212 Integrated Resistor-Capacitor Termination Network can support or terminate 18 data lines.
No, the PRC202/212 requires no DC power.
The operating temperature range is 0°C to 70°C.
