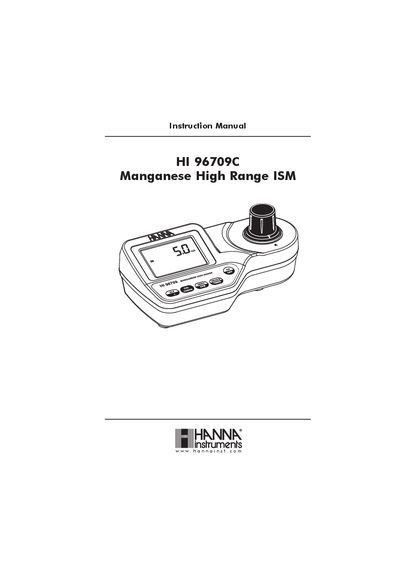

HI 96709C Manganese High Range ISM instruction manual, which introduces the product's functions, features, usage methods, precautions, etc.
The HI 96709C is an auto-diagnostic, splash-waterproof portable colorimeter designed to measure manganese content in water and wastewater. It utilizes a tungsten lamp and narrow band interference filter for accurate readings based on the Periodate method from Standard Methods (18th edition). The instrument features a CAL CHECK validation function using NIST traceable standards and includes an auto-shut-off feature.
| Range | 0.0 to 20.0 mg/L |
|---|---|
| Resolution | 0.1 mg/L |
| Accuracy | +0.2 mg/L +3% of reading @ 25°C |
| Light Source | Tungsten lamp |
| Battery Type | 1x9 volt |
| Dimensions | 192 x 102 x 67 mm (7.6 x 4 x 2.6") |
| Weight | 290 g (10 oz) |
The method is an adaptation of Standard Methods for the Examination of Water and Wastewater, 18th edition, Periodate method.
The meter has an auto-shut off feature that turns it off after 10 minutes in measurement mode or 1 hour in calibration mode.
The HI 96709 is warranted for two years against defects in workmanship and materials.
