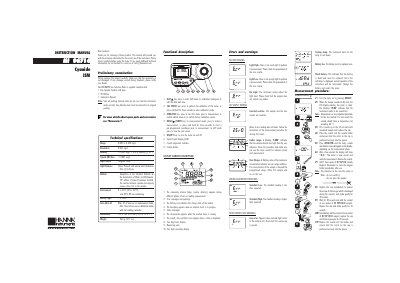

This document describes the functions of the keys in GLP mode, calibration mode, and measurement mode. It also provides a preliminary examination of the instrument and a list of accessories.
The Hanna Instruments HI 96714 is a portable Selective Meter designed for the determination of cyanide in water and wastewater. The instrument utilizes the Pyridine-Pyrazolone method, where the reaction between cyanide and reagents causes a blue tint in the sample. It features a tungsten lamp light source and a silicon photocell detector with a narrow band interference filter at 610 nm.
| Range | 0.000 to 0.200 mg/L |
|---|---|
| Light Source | Tungsten Lamp |
| Light Detector | Silicon Photocell with narrow band interference filter @ 610 nm |
| Dimensions | 192 x 104 x 69 mm |
| Weight | 360 g |
The measurement range is 0.000 to 0.200 mg/L.
The instrument shuts down after 10 minutes of non-use in measurement mode.
The typical detection limit is 0.001 mg/L.
