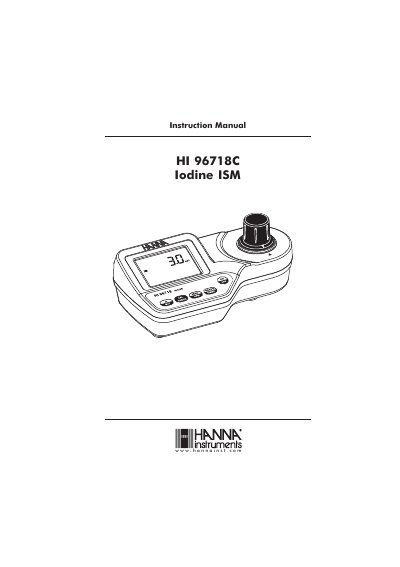

This is the instruction manual for a device used to measure the iodine concentration.
The HI 96718C is an auto-diagnostic portable microprocessor meter designed to measure iodine (I2) content in water samples ranging from 0.0 to 12.5 mg/L. It utilizes an advanced optical system based on a tungsten lamp and a narrow band interference filter to ensure accurate and repeatable readings. The instrument features a powerful CAL CHECK validation function and is splash waterproof for field applications.
| Range | 0.0 to 12.5 mg/L |
|---|---|
| Accuracy | +0.1 mg/L +5% of reading @ 25°C |
| Light Source | Tungsten lamp |
| Light Detector | Silicon Photocell with narrow band interference filter @ 525nm |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Auto-Shut off | After 10' of non-use in measurement mode, after 1 hour of non-use in calibration mode |
| Dimensions | 192 x 102 x 67 mm (7.6 x 4 x 2.6") |
| Weight | 290 g (10 oz) |
The meter measures iodine content in the 0.0 to 12.5 mg/L (ppm) range.
The required reagent is HI 93718-0 DPD Powder Reagent.
The instrument turns off after 10 minutes of non-use in measurement mode or after 1 hour if left in calibration mode.
The instrument is warranted for two years against defects in workmanship and materials.
