This manual introduces the use of Hanna HI 96706 Phosphorus Electrode, including operation steps, maintenance and troubleshooting.

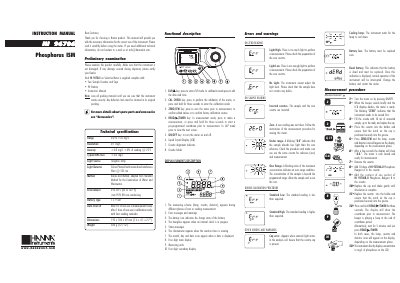

This document is the instruction manual for the Hanna Instruments HI 96706 Phosphorus ISM (In-Situ Meter). It provides essential information for the correct use of the instrument, including preliminary examination steps and a list of included items such as sample cuvettes, caps, and a battery. The manual details technical specifications like measurement range (0.0 to 15.0 mg/l) and accuracy.
| Range | 0.0 to 15.0 mg/l |
|---|---|
| Resolution | 0.1 mg/l |
| Accuracy | ±0.3 mg/l ±4% of reading @ 25°C |
| Light Source | Tungsten lamp |
| Filter wavelength | 525 nm |
| Method | Amino Acid Method |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Dimensions | 192 x 104 x 69 mm |
One fresh battery lasts for around 750 measurements, depending on the light level.
An over range condition occurs when the concentration of the sample is beyond the programmed range.
