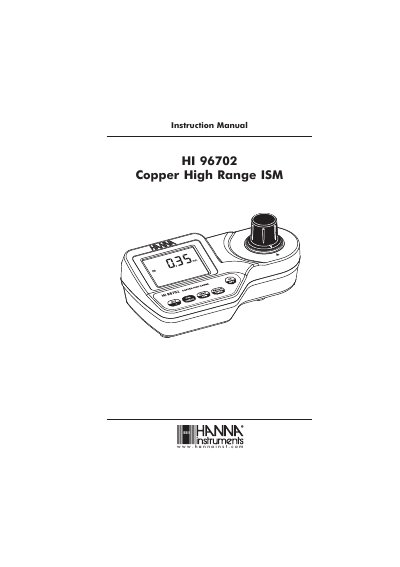

This document is the instruction manual for the HI 96702 Copper High Range ISM instrument produced by Hanna Instruments Inc. The manual provides detailed information on the specifications, precision and accuracy, principle of operation, measurement procedure, calibration procedure, and battery management of the instrument.
The HI 96702 is an auto-diagnostic portable microprocessor meter designed to measure copper content in water and wastewater within the range of 0.00 to 5.00 mg/L (ppm). The instrument features an advanced optical system based on a tungsten lamp and narrow band interference filter, ensuring accurate and repeatable readings. It includes a CAL CHECK validation function using NIST traceable standards to verify performance at any time.
The device is splash waterproof and designed for field applications with an auto-shut-off feature that turns off the instrument after 10 minutes of non-use in measurement mode or 1 hour in calibration mode. The manual covers preliminary examination, startup procedures, measurement and validation steps, calibration instructions, battery management, and warranty information.
| Range | 0.00 to 5.00 mg/L |
|---|---|
| Resolution | 0.01 mg/L |
| Accuracy | +0.02 mg/L +4% of reading @ 25°C |
| Light Source | Tungsten lamp |
| Light Detector | Silicon Photocell with narrow band interference filter @ 575nm |
| Method | Adaptation of EPA approved method |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Dimensions | 192 x 104 x 69 mm (7.6 x 4.1 x 2.7") |
| Weight | 360 g (12.7 oz) |
The meter measures copper content in water and wastewater in the 0.00 to 5.00 mg/L (ppm) range.
The instrument turns off after 10 minutes of non-use in measurement mode or after 1 hour if left in calibration mode.
Users must fill out and return the enclosed warranty card within 14 days from the date of purchase.
