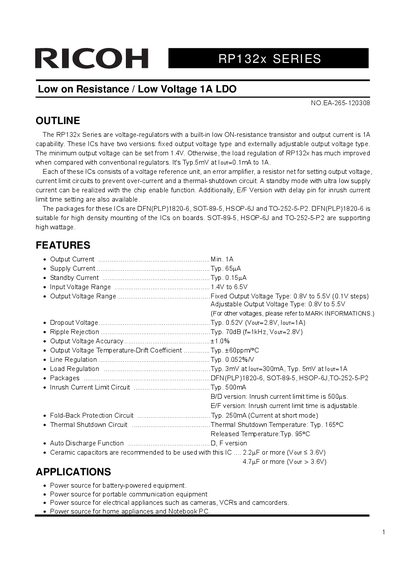

RP132x SERIES Low on Resistance / Low Voltage 1A LDO
The Ricoh RP132x Series are voltage-regulator integrated circuits featuring a built-in low ON-resistance transistor with an output current capability of 1A. The series includes two versions: fixed output voltage type and externally adjustable output voltage type, with a minimum output voltage setting of 1.4V. These ICs incorporate features such as fold-back protection, thermal shutdown, and optional delay pins for inrush current limiting.
| Output Current | 1A capability |
|---|---|
| Operating Temperature Range | -40 to 85 °C |
| Thermal Shutdown Temperature | Typ. 165°C |
| Packages | DFN(PLP)1820-6, SOT-89-5, HSOP-6J, TO-252-5-P2 |
The minimum output voltage can be set from 1.4V.
The RP132x Series voltage-regulators have an output current capability of 1A.
The minimum output voltage can be set from 1.4V.
The thermal shutdown temperature is typically 165°C.
