The R1131x series are CMOS-based low voltage regulator ICs with output voltage range from 0.8V to 3.3V. The minimum operating voltage is 1.4V.

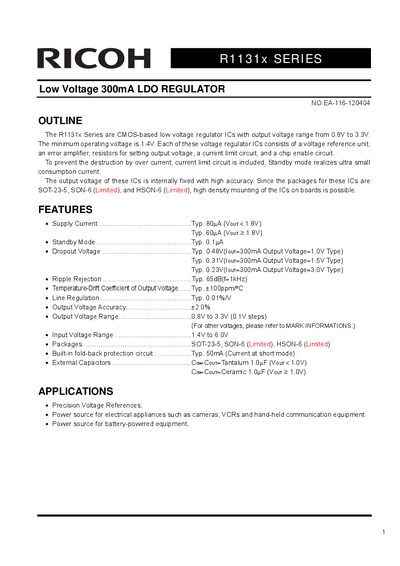

The Ricoh R1131x Series consists of CMOS-based low voltage regulator ICs with an output voltage range from 0.8V to 3.3V. These devices include a voltage reference unit, error amplifier, current limit circuit, and chip enable circuit to ensure stable operation and prevent destruction by overcurrent. The series is available in SOT-23-5, SON-6, and HSON-6 packages to facilitate high-density mounting.
| Output Voltage Range | 0.8V to 3.3V |
|---|---|
| Minimum Operating Voltage | 1.4V |
| Dropout Voltage (Typ) | 0.48V (Vout=1.0V) |
| Output Current | 300 mA |
| Operating Temperature Range | -40 to 85 °C |
| Packages | SOT-23-5, SON-6, HSON-6 |
The minimum operating voltage is 1.4V.
The series is available in SOT-23-5, SON-6, and HSON-6 packages.
