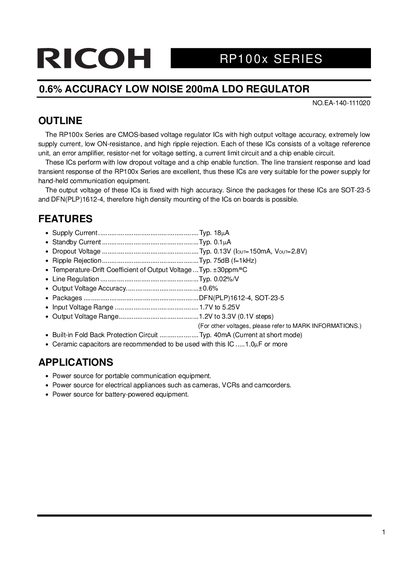

The RP100x Series are CMOS-based low-dropout linear regulators with high output voltage accuracy, extremely low supply current, low ON-resistance, and high ripple rejection.
The document describes the RP100x Series as CMOS-based voltage regulator ICs featuring high output voltage accuracy (0.6%), extremely low supply current (18nA), and low ON-resistance. These components are designed for use in power supplies for hand-held communication equipment, cameras, VCRs, and other battery-powered devices.
| Supply Current | 18nA (typ) |
|---|---|
| Dropout Voltage | 0.13V (Iour=150mA, Vout=2.8V) |
| Ripple Rejection | 75dB (f=1kHz) |
| Output Voltage Accuracy | +/- 0.6% |
| Output Current | 300 mA (Max) |
The device supports an output current of up to 300 mA.
Ceramic capacitors with a value of 1.0uF or more are recommended for both C1 and C2.
The regulator operates within a temperature range of -40 to 85 °C.
