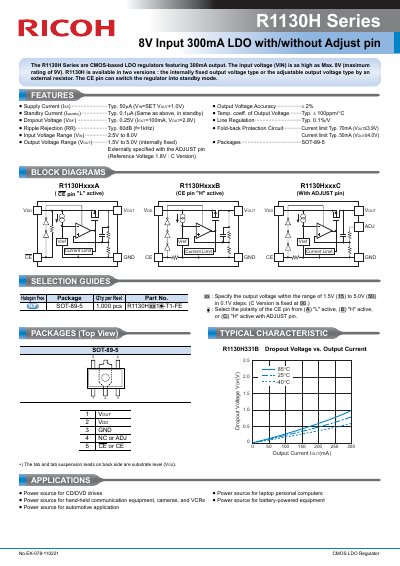

The R1130H Series is a CMOS-based LDO regulator with a 300mA output. The input voltage (VIN) can go as high as 8V (maximum rating of 9V). R1130H is available in two versions: the internally fixed output voltage type or the adjustable output voltage type using an external resistor. The CE pin can switch the regulator into standby mode.
The R1130H Series are CMOS-based Low Dropout (LDO) regulators featuring a maximum output current of 300mA. The series supports an input voltage range up to 9V and offers two versions: one with an internally fixed output voltage and another with an adjustable output voltage set by an external resistor.
| Output Current (Iss) | 300mA |
|---|---|
| Maximum Input Rating | 9V |
| Dropout Voltage (Typ.) | 0.25V |
The maximum input voltage rating is 9V, although the typical operating range goes up to 8.0V.
No, the series includes two versions: one with an internally fixed output voltage and another that is adjustable via an external resistor.
The devices are available in SOT-89-5 packages.
