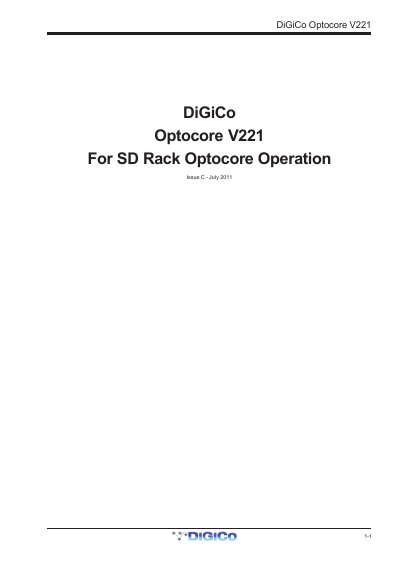

This document introduces the use of DiGiCo Optocore V221, including system overview, audio IO panel, audio sync, port list, port management and SD rack splits
The DiGiCo Optocore V221 is a flexible fiber optic system designed for SD Racks. It supports up to 10 SD Engines (consoles) and 14 racks, operating at speeds of either 1G or the default 2G. The system allows for 448 channels of audio per loop at sample rates of 48k or 96k.
| Max SD Engines supported | 10 |
|---|---|
| Max Racks supported | 14 |
| Default Fibre Speed | 2G |
| Max channels per loop (48k/96k) | 448 |
| Max simultaneously routed signals | 384 inputs and 384 outputs |
The system supports audio at either 48k or 96k sample rates.
Yes, but they will not work on the loop if set to these values; these are used for factory testing only.
Up to 128 busses are available when using 96KHz sample rate.
