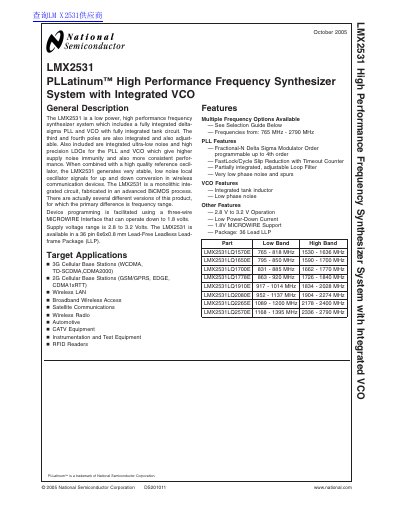

The LMX2531 is a low power, high performance frequency synthesizer system that includes a fully integrated delta-sigma PLL and VCO with a fully integrated tank circuit. The third and fourth poles are also integrated and also adjustable. Also included are integrated ultra-low noise and high precision LDOs for the PLL and VCO which give higher supply noise immunity and more consistent performance. When combined with a high quality reference oscillator, the LMX2531 generates very stable, low noise local oscillator signals for up and down conversion in wireless communication devices. The LMX2531 is a monolithic integrated circuit, fabricated in an advanced BiCMOS process. There are actually several different versions of this product, for which the primary difference is frequency range. Device programming is facilitated using a three-wire MICROWIRE Interface that can operate down to 1.8 volts. Supply voltage range is 2.8 to 3.2 Volts. The LMX2531 is available in a 36 pin 6x6x0.8 mm Lead-Free Leadless Lead-frame Package (LLP). Target Applications n 3G Cellular Base Stations (WCDMA, TD-SCDMA,CDMA2000) n 2G Cellular Base Stations (GSM/GPRS, EDGE, CDMA1xRTT) n Wireless LAN n Broadband Wireless Access n Satellite Communications n Wireless Radio n Automotive n CATV Equipment n Instrumentation and Test Equipment n RFID Readers Features Multiple Frequency Options Available
The LMX2531 is a monolithic integrated circuit fabricated in an advanced BiCMOS process. It includes a fully integrated delta-sigma PLL and VCO with a fully integrated tank circuit, along with adjustable third and fourth poles. The device features ultra-low noise and high precision Low Dropout Regulators (LDOs) for the PLL and VCO to ensure higher supply noise immunity and consistent performance.
| Frequency Range | 765 MHz - 2790 MHz |
|---|---|
| Supply Voltage Range | 2.8 V to 3.2 V |
| Package Type | 36 pin LLP (Lead-Free Leadless Lead-frame) |
| Interface Voltage | 1.8 V |
| Operating Temperature Range | -40°C to +85°C |
The primary difference between several different versions of the LMX2531 is the frequency range.
The device operates with a supply voltage ranging from 2.8 to 3.2 Volts.
This specific model supports frequencies from 1168 MHz to 1395 MHz and from 2336 MHz to 2790 MHz.
These input pins must not exceed a voltage of 2.75V.
