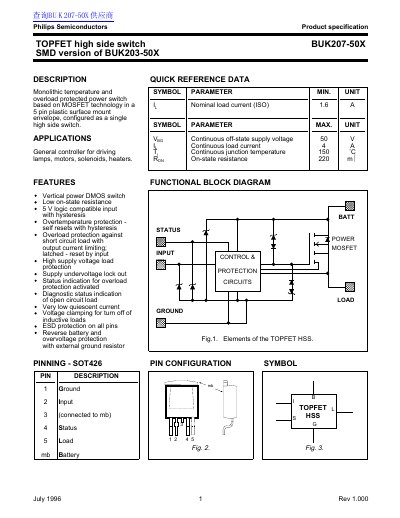

BUK207-50X is a high side switch device launched by Philips Semiconductors, with 5V logic compatible input, over temperature protection, overload protection, high voltage load protection, low static current and other features.
The BUK207-50X is a SMD version of the BUK203-50X, configured as a single high side switch in a 5 pin plastic surface mount envelope. It is designed as a general controller for driving lamps, motors, solenoids, and heaters.
| Nominal load current (ISO) | 1.6 A |
|---|---|
| Continuous off-state supply voltage | 50 V |
| Continuous load current | 4 A |
| Continuous junction temperature | 150 °C |
| On-state resistance | 220 mΩ |
| Package type | SOT426 |
Yes, it features overtemperature protection that self resets with hysteresis.
The device supports a continuous load current of up to 4 A.
The switch can handle a continuous off-state supply voltage of 50 V.
