This document describes the features and performance of the ZOOM 509, including two modulation modules, 20 effects, Harmonized Pitch Shifter, 24 patch storage, and auto-chromatic tuner.

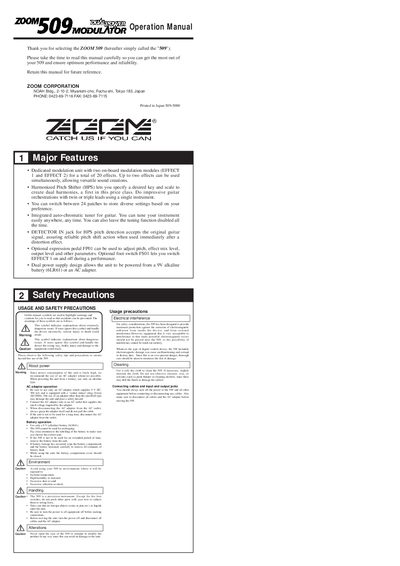

This document is the operation manual for the ZOOM 509, a dedicated modulation unit designed for guitarists. It details the use of two on-board modulation modules (EFFECT 1 and EFFECT 2) capable of creating up to 20 effects simultaneously. Key features highlighted include a Harmonized Pitch Shifter (HPS) for dual harmonies and an integrated auto-chromatic tuner.
| Modulation Modules | two on-board modulation modules (EFFECT 1 and EFFECT 2) |
|---|---|
| Total Effects | 20 effects |
| Simultaneous Effects | Up to two effects |
| Patches | 24 patches |
| Power Supply (Battery) | 9V alkaline battery (6LR61) |
| Power Supply (AC Adapter) | 9 V DC, 300 mA |
Yes, the unit can be powered from a 9V alkaline battery (6LR61) or an AC adapter.
The unit requires a 9 V alkaline battery, specifically model 6LR61.
The adapter must supply 9 V DC at 300 mA with a center minus plug.
The reference pitch can be adjusted from 436 Hz to 445 Hz.
