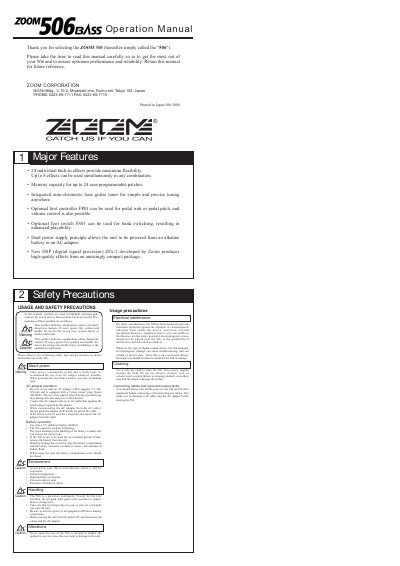

This manual provides an overview of the features and functions of the ZOOM 506 effects processor, including 24 built-in effects, programmable patches, auto-chromatic tuner, and optional foot controllers.
The document is an operation manual for the ZOOM 506, a bass guitar effects unit featuring 24 built-in DSP effects and auto-chromatic tuning. It details how to select patches using foot pedals or optional switches, manage bank switching, and utilize the bypass/mute modes.
| Built-in effects count | 24 individual built-in effects |
|---|---|
| Simultaneous effects | Up to 8 effects simultaneously |
| Memory capacity | 24 user-programmable patches |
| Power supply (AC) | 9 V DC, 300 mA |
| Battery type | 9 V alkaline (6LR61) |
Bank switching is performed with the VALUE +/ - keys.
Yes, pressing the patch pedals switches between patches continuously or within a bank depending on settings.
Press both patch pedals simultaneously to enter Bypass mode, which activates the auto-chromatic tuning function.
