The ZOOM FIRE-18M is a modeling guitar amplifier that features a built-in microphone for picking up the sound of the speaker, and a set of direct output jacks.

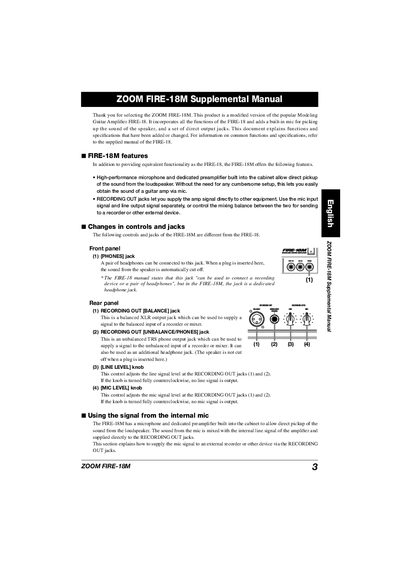

The ZOOM FIRE-18M is a modified version of the popular FIRE-18 modeling guitar amplifier. It incorporates all the functions of the original FIRE-18 while adding a built-in microphone for direct pickup of the speaker sound and a set of direct output jacks. This document explains the specific functions and specifications that have been added or changed, referring users to the supplied FIRE-18 manual for common functions.
| Microphone Type | Omnidirectional condenser microphone |
|---|---|
| Headphone Output | Standard stereo phone jack |
| Balanced Output | XLR-3-32 jack |
| Balanced Output Level | +4dBm with output load impedance 10 kilohms or more |
| Unbalanced Output | Standard stereo phone jack |
| Unbalanced Output Level | +4dBm with output load impedance 10 kilohms or more |
The FIRE-18M adds a built-in mic for picking up the sound of the speaker and a set of direct output jacks.
The sound from the speaker is automatically cut off.
Adjust the [MIC LEVEL] and [LINE LEVEL] knobs to obtain the desired balance.
