The S·Mix is a 5-channel compact mixer packed with high-end mixer features. It includes a balanced microphone input with phantom power for connecting condenser microphones; two high impedance line inputs; a stereo channel with volume control; high quality low noise op-amps; rugged aluminum extrusion chassis; large rubber bumper feet; 18 volt AC adapter.

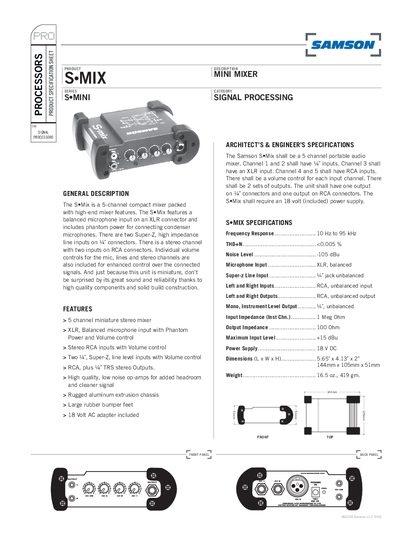

The document describes the Samson SeMix Mini Mixer, a portable 5-channel signal processor designed for architectural and engineering applications. It features balanced microphone input with phantom power, stereo RCA inputs, and two high-impedance line inputs on 4-inch connectors.
Key specifications include a frequency response of 10 Hz to 95 kHz, low noise levels of -85 dBu, and THD+N less than 0.005%. The unit operates on an included 18 VDC power supply and measures approximately 5.65 inches in length.
| Frequency Response | 10 Hz to 95 kHz |
|---|---|
| THD+N | <0.005 % |
| Noise Level | -85 dBu |
| Power Supply | 18 VDC |
| Dimensions (L x W XH) | 5.65" x 4.13" x 2" |
| Weight | 16.5 oz, 419 gm. |
The unit requires an 18 volt DC power supply, which is included with the mixer.
The mixer measures 5.65 inches by 4.13 inches by 2 inches.
The maximum input level is rated at +15 dBu.
