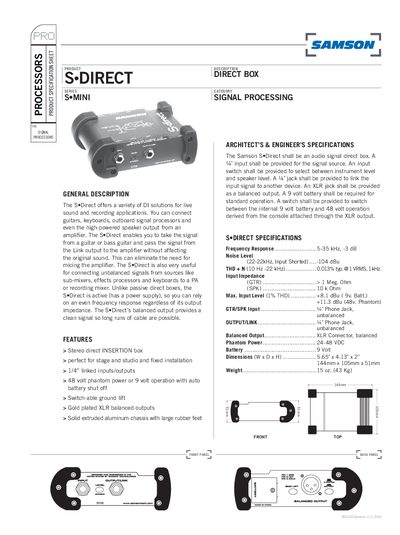

S•Direct is a stereo direct INSERTION box which is perfect for stage, studio and fixed installation. It features 1/4” linked inputs/outputs, 48 volt phantom power or 9 volt operation with auto battery shut off. S•Direct’s balanced output provides a clean signal so long runs of cable are possible.
The Samson SeDirect is an active stereo direct insertion box designed for live sound and recording applications. It allows users to connect instruments like guitars and keyboards directly to a PA or recording mixer without affecting the original sound of amplifiers. The unit features 1/4" linked inputs/outputs, gold-plated XLR balanced outputs, and supports both 9-volt battery operation and 48-volt phantom power.
| Frequency Response | 5-35 kHz, -3 dB |
|---|---|
| Noise Level | -104 dBu (22-22kHz, Input Shorted) |
| Total Harmonic Distortion + Noise | 0.013% typ. @ 1 VRMS, 1kHz |
| Input Impedance (Guitar) | 1 Meg. Ohm |
| Input Impedance (Speaker) | 10 k Ohm |
| Max Input Level (9V Battery) | +8.1 dBu |
| Max Input Level (48V Phantom) | +11.3 dBu |
| Input Connector | 1/4" Phone Jack, unbalanced |
| Output/Link Connector | 1/4" Phone Jack, unbalanced |
| Balanced Output Connector | XLR Connector, balanced |
| Phantom Power | 24-48 VDC |
| Dimensions (W x D x H) | 144mm x 105mm x 51mm |
| Weight | 15 oz. |
It supports 9-volt battery operation or 48-volt phantom power derived from a console.
Yes, it allows passing the signal from a guitar or bass directly to the amplifier without affecting the original sound.
