This document provides important safety information and operating instructions for a 10-channel rack mount line mixer. The product features protection against electric shock and important operating and maintenance instructions. Additionally, the document provides guidance on the disposal and recycling of the product.

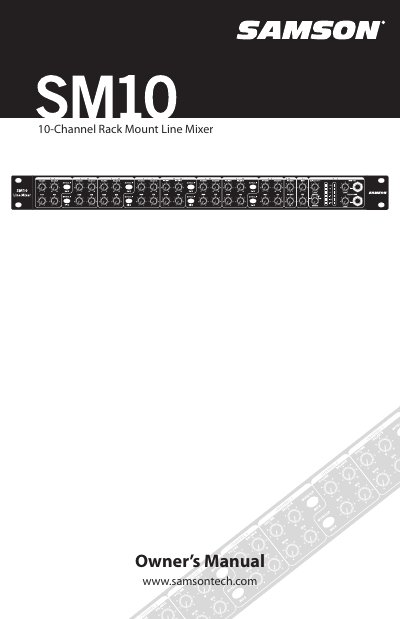

The Samson SM10 is a versatile 10-channel rack mount mixer designed for fixed installation, live sound, and recording applications. It features eight independent stereo line input channels and two channels with XLR microphone preamps. The unit includes versatile signal routing options via Main Mix, Mix B, Monitor, and EFX bus outputs, along with a built-in power supply and rugged construction suitable for road use.
| Number of Input Channels | 10 input channels |
|---|---|
| Microphone Preamps | Two channels with XLR microphone preamps |
| Phantom Power | 48-Volt phantom power |
| Line Inputs | Two additional line inputs with stereo 1/4" jacks |
| Frequency Response | 10 Hz - 23 kHz+1 dB |
| Signal-to-noise ratio | > 90 dB typical |
| THD | <0.01% typical |
| Power Requirements | 120-240 VAC / 50-60 Hz |
| Dimensions | 19"L x 8.25"W x 1.75"H |
| Weight | 6 lbs / 2.8 kg |
Yes, the SM10 features low noise, discrete microphone pre-amplifiers with 48-Volt phantom power.
Yes, the SM10 is a comprehensive solution for applications including on-stage monitoring.
