The focus BRAIN XL is an intelligent wireless DMX controller for focusing and scene modes of lighting fixtures. It can store and recall up to 51 memories, support 512 channels, and has HTP merging capability.

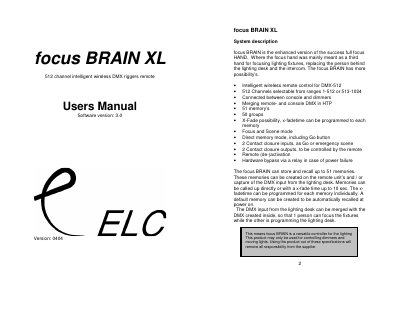

The ELC FocusBrain XL is an enhanced version of the Focus Hand, designed as an intelligent wireless remote control for DMX-512 lighting systems. It allows for the selection of 512 channels from ranges 1-512 or 513-1024 and can merge remote and console DMX signals in HTP mode. The system consists of a remote unit with 16 keys and a slide switch, a separate active antenna, and a 19-inch receiver unit.
| Channels | 512 channels selectable from ranges 1-512 or 513-1024 |
|---|---|
| Memories | 51 memories |
| Groups | 50 groups |
| Fade time | up to 10 sec |
| Indoor range | up to 70m |
| Antenna cable length | up to 100m |
| DMX connection | 5 pin XLR |
The specified indoor range is up to 70m, though steel tubing and building skeletons can influence this.
The unit can store and recall up to 51 memories.
Yes, the DMX input from the lighting desk can be merged with the DMX created inside.
