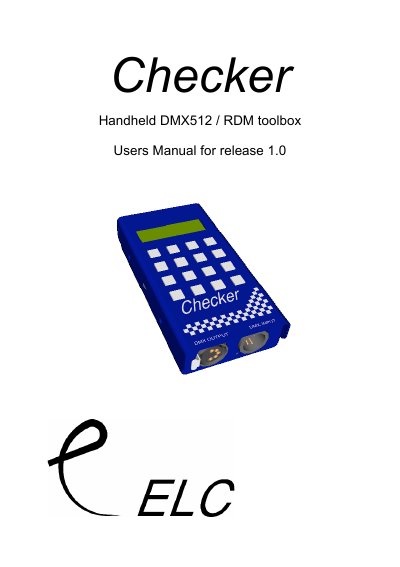

ELC DMX Checker Handheld DMX512/RDM Toolbox User Manual

This manual introduces the features and characteristics of the ELC DMX Checker product, including sending DMX, viewing DMX input, analyzing DMX input timing and line voltages, fixture testing, RDM (bi-directional DMX) device discovery, identification and address setting, full real-time show recording and playback, cable testing and Dipswitch calculator.

Brand: ELC
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 5
File format: PDF
File size: 105 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9848F767404E4B033F7CBEC94634834A
PDF: ELC DMX Checker Handheld DMX512/RDM Toolbox User Manual PDF

About this manual

The ELC DMX Checker is a handheld toolbox designed for DMX512 and RDM applications. It features a graphic backlit display, a 16-button backlit keypad, and a side thumb encoder. The device supports sending DMX commands, viewing input values, and analyzing timing and line voltages. It includes an internal 1GB disk for recording and playback of real-time shows.

What's inside

Send DMX
View DMX
Fixture Test
RDM control
Show Playback
Show Recording
Cable Test
Dipswitch Calculator
Options

Frequently asked questions

What is the storage capacity of the internal disk used for recording shows?

The unit records shows on an internal 1GB disk.

How many channels can be displayed on a single screen when viewing DMX values?

The display can show up to 120 channels in one screen.

What are the connection types for the DMX input and output ports?

Both the DMX input and DMX output connect via XLR5.
