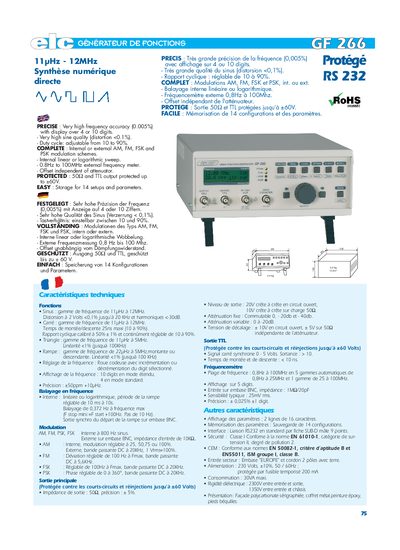

The GF 266 is a digital direct synthesis function generator with a frequency range of 11µHz to 12MHz. It can generate sine, square, triangle, ramp, AM, FM, PSK, FSK and frequency hopping modulated signals.
The GF 266 is a direct‑digital‑synthesis function generator offering a wide frequency range from 0.8 Hz up to 100 MHz. It provides high‑precision sine, square, triangle and ramp waveforms with low distortion and adjustable duty cycle.
The unit includes internal and external AM, FM, FSK and PSK modulation, a protected TTL output, RS‑232 interface, and a 230 V mains supply with safety compliance to EN standards. Fourteen parameter configurations can be stored for quick recall. This manual is written in French.
| Frequency range | 0.8 Hz – 100 MHz |
|---|---|
| Output amplitude (open‑circuit) | 20 V peak‑to‑peak |
| Interface | RS‑232, 9‑pin SUB‑D |
The GF 266 covers frequencies from 0.8 Hz up to 100 MHz.
It uses an RS‑232 link with a 9‑pin SUB‑D connector.
The open‑circuit output can reach 20 V peak‑to‑peak.
