ELC showStore XLan User Manual

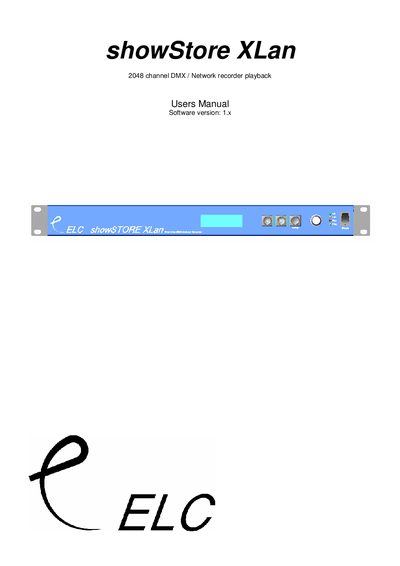

This manual introduces the showStore XLan 2048 channel DMX / Network recorder playback Users Manual, software version, front panel, connectivity options

Brand: ELC
Document type: User Manual
Language: English
Pages: 10
File format: PDF
File size: 73 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9A90F3224E7663D513A5A25AE1E9A650
PDF: ELC showStore XLan User Manual PDF

About this manual

The ELC showStore XLan is a 2048-channel DMX and Network recorder designed for playback and recording of lighting shows. It features a front panel with an LCD display, keys, and a jog-encoder, along with extensive connectivity options including RS-232, MIDI, USB, Ethernet (ArtNet), and multiple DMX inputs/outputs.

What's inside

Front Panel
Connections
Operation
Setup / Options
DMX Control
Automation / Remote Control

Specifications

Channel Count	2048 channel
Network Speed	10/100 MBit Ethernet
USB Standard	USB 2.0 Full-speed
DMX Output Channels	14+2
Timecode Support	SMPTE LTC at 24, 25, 29.97 and 30 fps

Frequently asked questions

How do I confirm overwriting an existing show?

Press keys A and B together to confirm the overwrite.

What are the available DMX output modes?

The modes are disabled, outzero, single, dual HTP (highest take precedence), and dual LTP (latest takes precedence).

How can I control the unit via serial connection?

You can use MIDI for triggering or RS-232 for ASCII command system control.
