gf 467af is a function generator with a frequency range of 0.01hz to 5mhz and a maximum output power of 15w. it has rs 232 interface and short circuit protection and overvoltage protection functions.

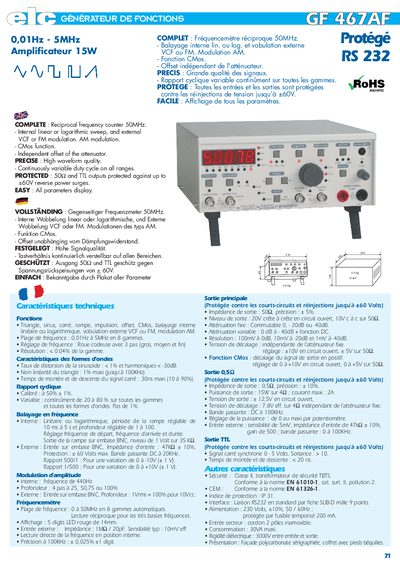

The ELC Protégé RS‑232 is a function‑generator‑type amplifier covering a frequency range from 0.01 Hz to 5 MHz in eight selectable ranges. It provides multiple waveform options (sine, triangle, square, ramp, impulse) with CMOS function, internal/external sweep, and AM modulation. Output power is rated at 15 W into 4 Ω with a maximum current of 2 A, and the unit includes variable attenuation and offset controls.
Safety features include protection against short‑circuit and reverse‑power surges up to +60 V, IP31 ingress protection, and compliance with EN 6T010‑1 and EN 6T326‑1 standards. The device is powered from 230 V mains (50/60 Hz) with a 200 mA timed fuse and consumes up to 30 VA. Control is provided via a standard RS‑232 9‑pin SUB‑D connector.
| Frequency range | 0.01 Hz – 5 MHz |
|---|---|
| Output power | 15 W into 4 Ω (max 2 A) |
| Power consumption | 30 VA max |
It covers 0.01 Hz to 5 MHz across eight selectable ranges.
The unit delivers up to 15 W into a 4 Ω load, with a maximum current of 2 A.
